Dimensions
515×515 cm
Floor area
25.5+9.2 m²
Wall thickness
58mm
Height
3.8m
Wall height
2.6m
Can be mirrored
Yes
DIMENSIONS
Outer wall dimensions – 515 x 515 cm
Floor area -25.5+9.2 m²
Height – 3848 mm
Wall height – 2565 mm
Eaves (front/sides/rear) – 2000 / 400 / 400 / 200 mm
Roof slope – 26
Roof area – 50 m²
Can be mirrored – Yes

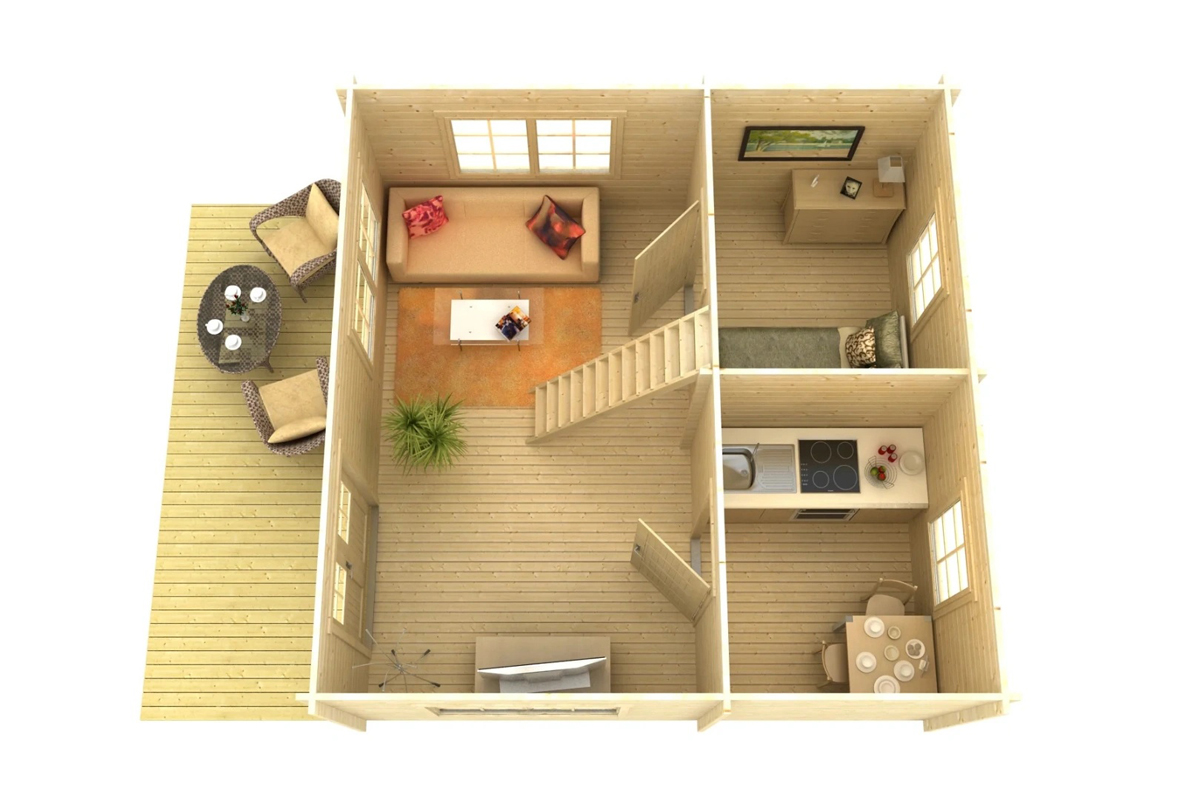

Number of rooms – 3
ROOF & FLOOR
Awning – 2000 mm
Roofing felt – No
Roof boards – 18 mm
Floor boards – 28 mm
Fasteners – Yes
DOORS & WINDOWS
Quality class – Q5
Windows – 2x (900 x 1165 mm), Toughened Double Glazing
3x (1666 x 1165 mm), Toughened Double Glazing
1x (650 x 635 mm), Toughened Double Glazing
Doors – 1x (1580 x 2040 mm), Toughened Double Glazing
2x (840 x 2040 mm), Solid Wood
Aluminium doors & windows – No
INCLUDED ITEMS
Terrace – Yes
Loft/Mezzanine – Yes
Integrated Storage – No
Items – Ladder, Terrace
